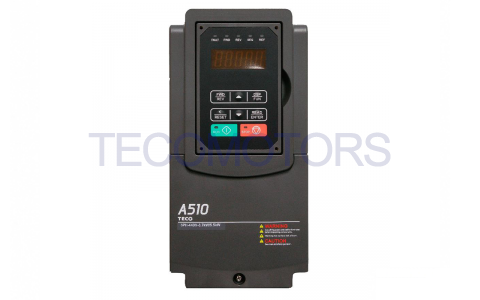

Product Features of TECO Inverter A510S
Equipped with TECO's latest high-performance current vector core control technology.
Simple parameter switching can drive IM, IPM, and SPM motors.
One machine integrates six major motor control modes: V/F, V/F+PG, SV, SLV.PMSC.PMSLV*.
Adopts the latest 32bit MCU and ASIC dual-core control architecture.
The dual-rated design can be used in both light-load and heavy-load applications.
The four-quadrant torque control capability has speed, torque, and position control modes.
Advanced rotary and stationary motor Auto-Tune function.
Unique intelligent overvoltage suppression can avoid instantaneous load energy recirculation and tripping.
Built-in annotated Modbus RTU communication protocol.
Supports various communication module expansions such as Profibus-DP, DeviceNet, and Ethernet.
Integrate advanced software and hardware functions such as PLC, PID, and safety stop.
Supports copy module to copy software parameters and settings.
Equipped with Soft-PWM modulation technology, it can effectively reduce the harsh noise of the motor at low carrier frequencies.
Comply with international CE, UL, RoHS standards and IEC/EN61800-3 and 61800-5-1 specifications.
The high-performance current vector inverter can significantly reduce the adjustment time through Auto-tune technology and is easy to install. It has a dual-rated design + six motor control modes. A single inverter can also correspond to IM, IPM, and SPM motors. Various combinations allow you to The machine can handle various tension, position, speed, and torque light and heavy load applications, and complies with CE and UL international safety certifications.
1. 220V model
Power range: 0.75～110KW single phase/three phase
Input voltage: 200V～240V
2. 440V model
Power range: 0.75V～315KW three-phase
Input voltage: 380V～480V
3. Protection level: IP00/IP20
4. International certification: UL, CE
Power corresponding model model
Number | Voltage | Power(KW) | Frame | Model | Size（W*H*D） |
01 | 220V | 0.75 | Frame1 | JNA510-2001-SEC | 130*215*150 |
02 | 1.5 | JNA510-2002-SEC |
03 | 2.2 | Frame2 | JNA510-2003-SEC | 140*279*177 |
04 | 3.7 | JNA510-2005-SE3C |
05 | 5.5 | JNA510-2008-SE3C |
06 | 7.5 | Frame3 | JNA510-2010-SE3C | 210*300*215 |
07 | 11 | Frame4 | JNA510-2015-SE3C | 265*360*225 |
08 | 15 | JNA510-2020-SE3C |
09 | 18.5 | JNA510-2025-SE3C |
10 | 22 | Frame5 | JNA510-2030-SE3C | 286.5*525*272 |
11 | 30 | JNA510-2040-SE3C |
12 | 37 | Frame6 | JNA510-2050-SE3C | 344*580*300 |
13 | 45 | JNA510-2060-SE3C |
14 | 55 | Frame7 | JNA510-2075-SE3C | 459*790*324.5 |
15 | 75 | JNA510-2100-SE3C |
16 | 90 | Frame8 | JNA510-2125-SE3C | 690*1000*410 |
17 | 110 | JNA510-2150-SE3C |
18 | 380V | 0.75 | Frame1 | JNA510-4001-SE3C | 130*215*150 |
19 | 1.5 | JNA510-4002-SE3C |
20 | 2.2 | JNA510-4003-SE3C |
21 | 3.7 | Frame2 | JNA510-4005-SE3C | 140*279*177 |
22 | 5.5 | JNA510-4008-SE3C |
23 | 7.5 | Frame3 | JNA510-4010-SE3C | 210*300*215 |
24 | 11 | JNA510-4015-SE3C |
25 | 15 | JNA510-4020-SE3C |
26 | 18.5 | Frame4 | JNA510-4025-SE3C | 265*360*225 |
27 | 22 | JNA510-4030-SE3C |
28 | 30 | Frame5 | JNA510-4040-SE3C | 286.5*525*272 |
29 | 37 | JNA510-4050-SE3C |
30 | 45 | JNA510-4060-SE3C |
31 | 55 | JNA510-4075-SE3C |
32 | 75 | Frame6 | JNA510-4100-SE3C | 344*580*300 |
33 | 90 | JNA510-4125-SE3C |
34 | 110 | Frame7 | JNA510-4150-SE3C | 459*790*324.5 |
35 | 132 | JNA510-4175-SE3C |
36 | 160 | JNA510-4215-SE3C |
37 | 160 | Frame8 | JNA510-4215-SE3HC | 690*1000*410 |
38 | 200 |
| JNA510-4270-SE3C |
39 | 220 |
| JNA510-4300-SE3C |
40 | 280 |
| JNA510-4375-SE3C |
41 | 315 |
| JNA510-4425-SE3C |
